Non-woven bags plateless digital printing machine

Perfect for Non-Woven & Bag Full-Color Printing

The CSJ-G8005C is a UV digital inkjet printer built for non-woven bags, white cardboard bags, burlap/canvas bags, pearlized bubble bags, and other bag substrates — no plate making, no color registration, and full-color output in a single pass. There is no minimum order quantity: even a single bag can be printed, making it ideal for on-demand and small-batch customization. It uses an eco-friendly UV ink system that cures instantly under LED light, so prints are dry the moment they leave the machine — no drying tunnel, no waiting. This makes it perfect for non-absorbent substrates like non-woven (spunbond PP) and coated film bags, where water-based inks would simply flake off. With CMYK plus a dedicated white/black channel, it prints vivid full color on both white and dark or colored bags without losing opacity. With a print speed of 0–40 m/min and a print width up to 216 mm, the G8005C runs bags from 100–600 mm (height) × 200–700 mm (width, customizable) automatically — including an in-line plasma pre-treatment, automatic deskew, and intelligent counting & stacking. Best for non-woven bag manufacturers, packaging converters, and print finishers that want to add high-value custom printing without the cost and MOQ of traditional plate-making or screen printing.

---

Empower Your Business

• Print on demand from 1 bag. No MOQ, no plate fees, no color registration — perfect for small-batch and personalized non-woven / shopping-bag orders.

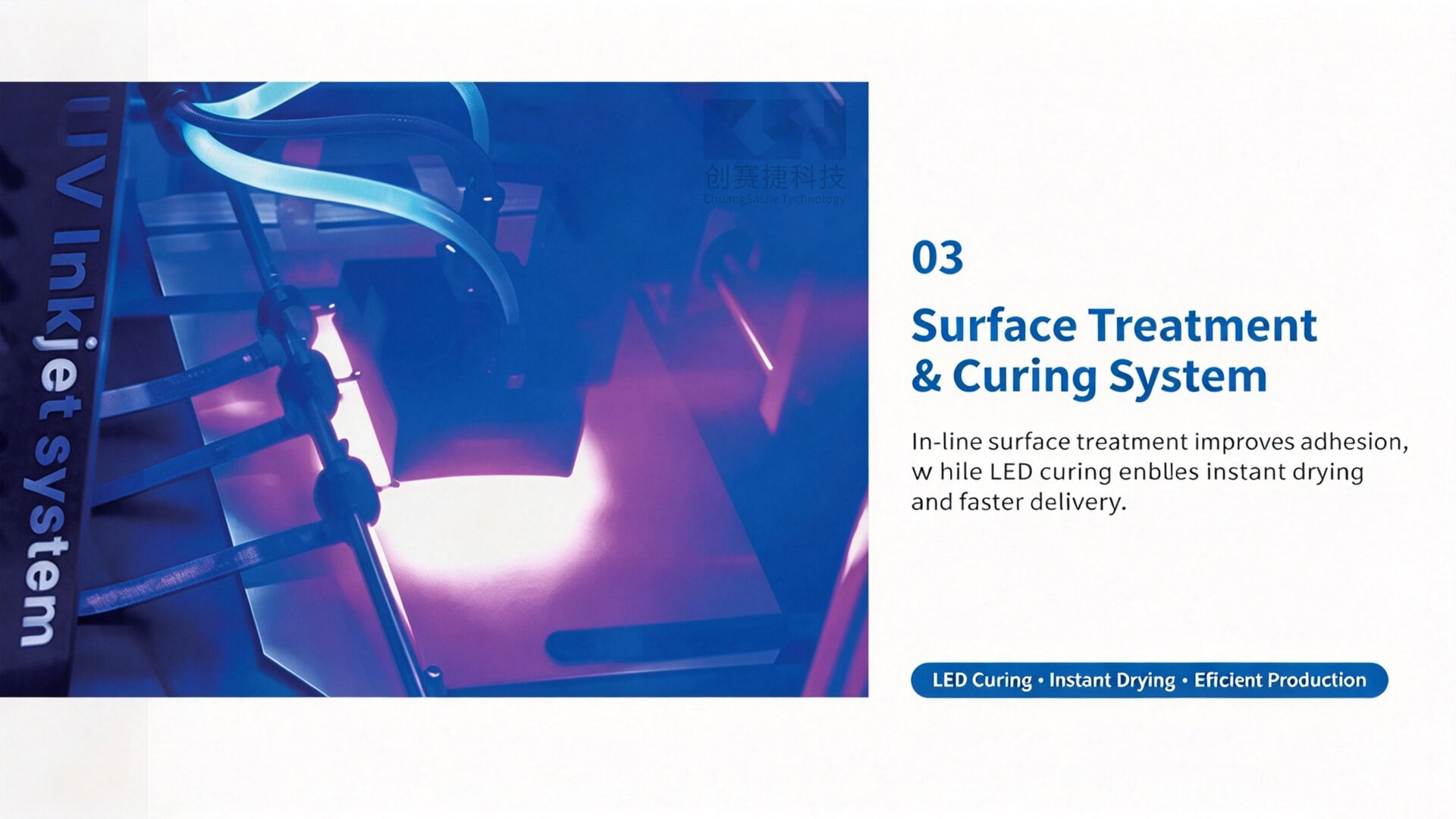

• UV ink, instant cure. Eco-friendly UV ink cures under LED the moment it prints — no drying time, ready to use immediately, and it bonds to non-absorbent substrates where water-based inks fail.

• Vivid color on dark bags. CMYK + dedicated white (W) / black (K) channel prints opaque, full-color graphics on colored and dark non-woven bags — not just white substrates.

• Wide bag compatibility. Handles white cardboard bags, non-woven bags, burlap/canvas bags, pearlized bubble bags, laser-film bags, and takeout bags; bag size 100–600 mm (H) × 200–700 mm (W, customizable).

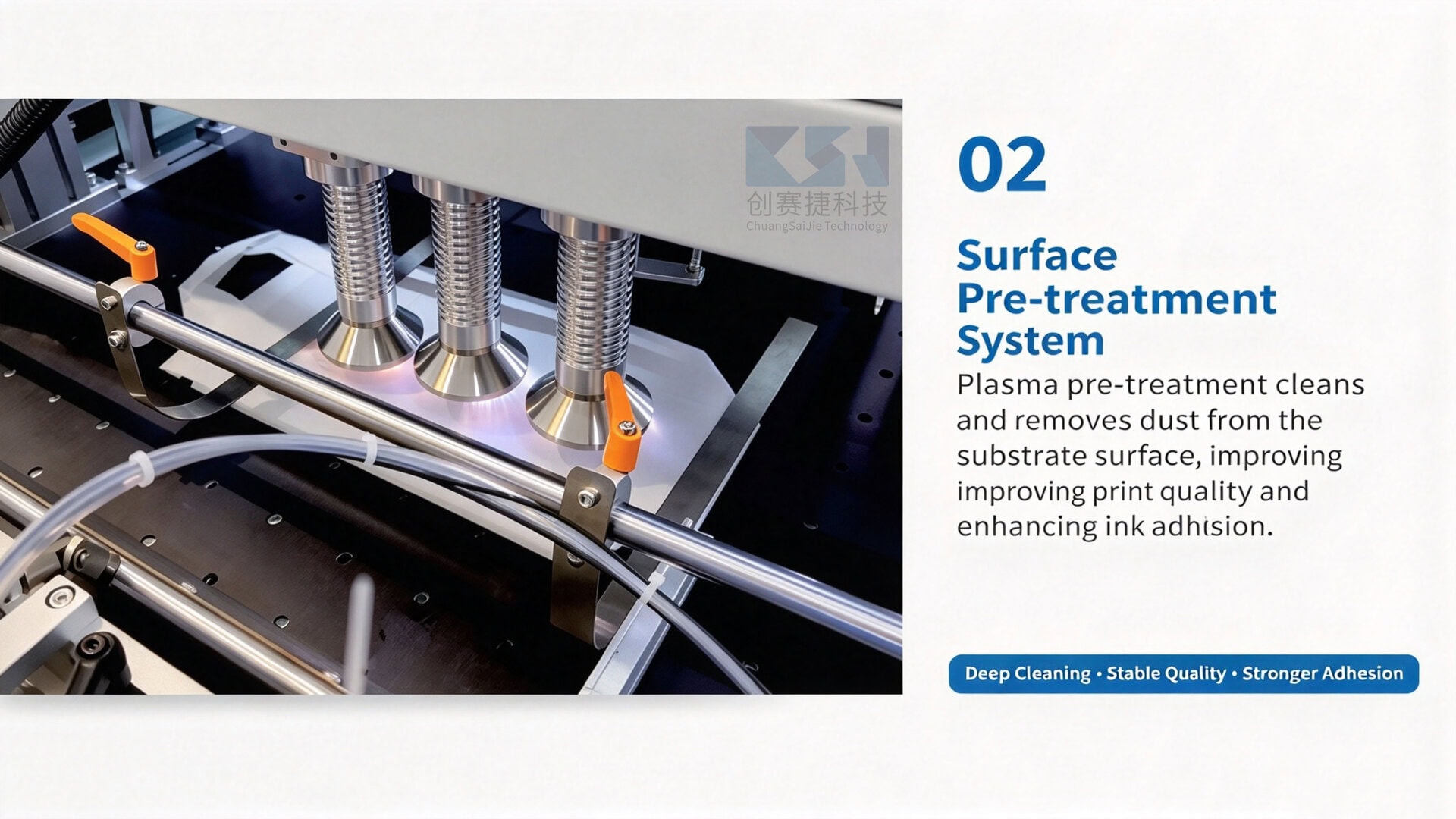

• Plasma surface pre-treatment. An in-line plasma system deeply cleans and dedusts the substrate, significantly improving ink adhesion and print quality.

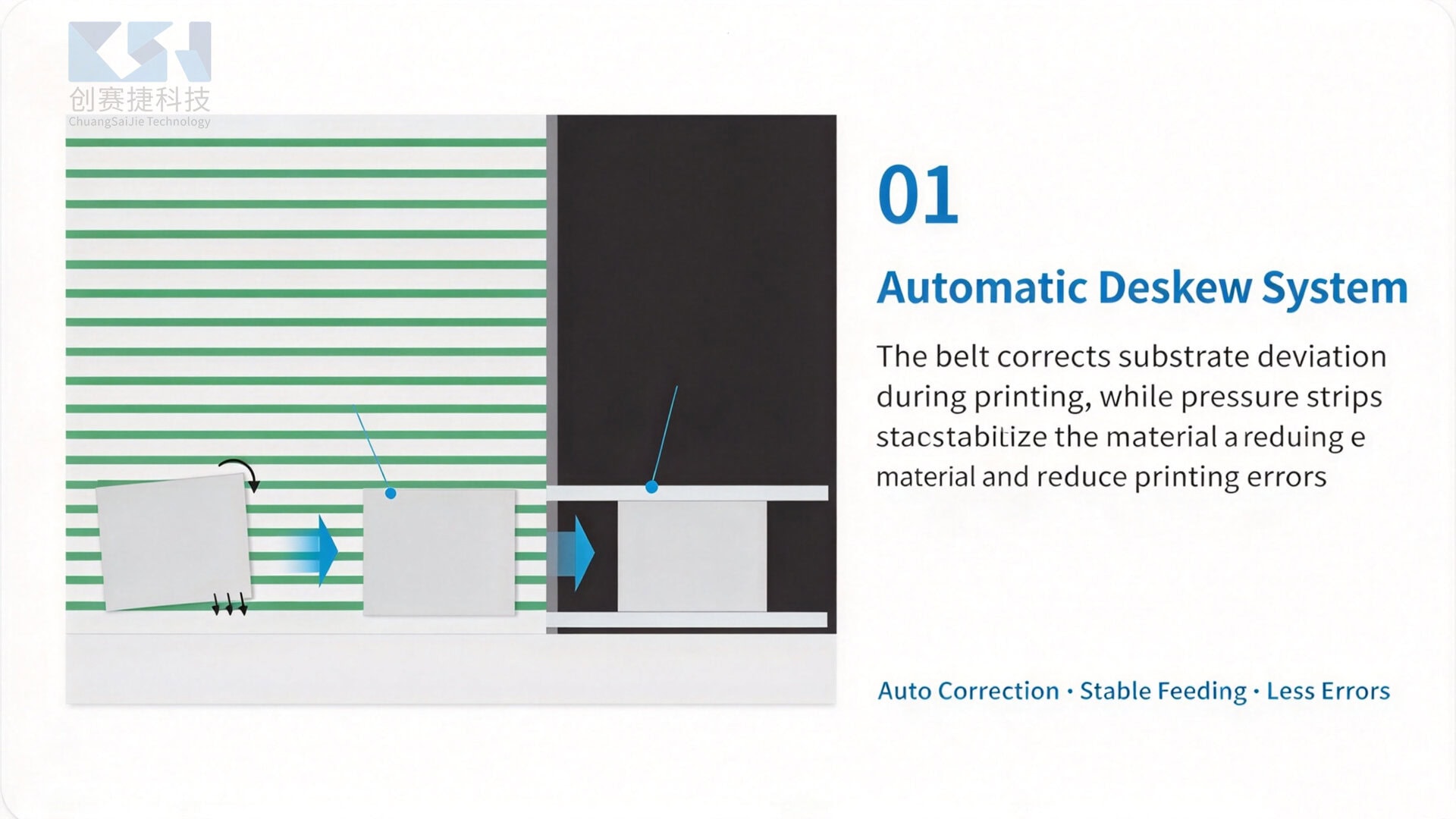

• Automatic deskew system. The belt auto-corrects substrate deviation and pressure strips hold each bag in place — no offset or misalignment, stable output quality.

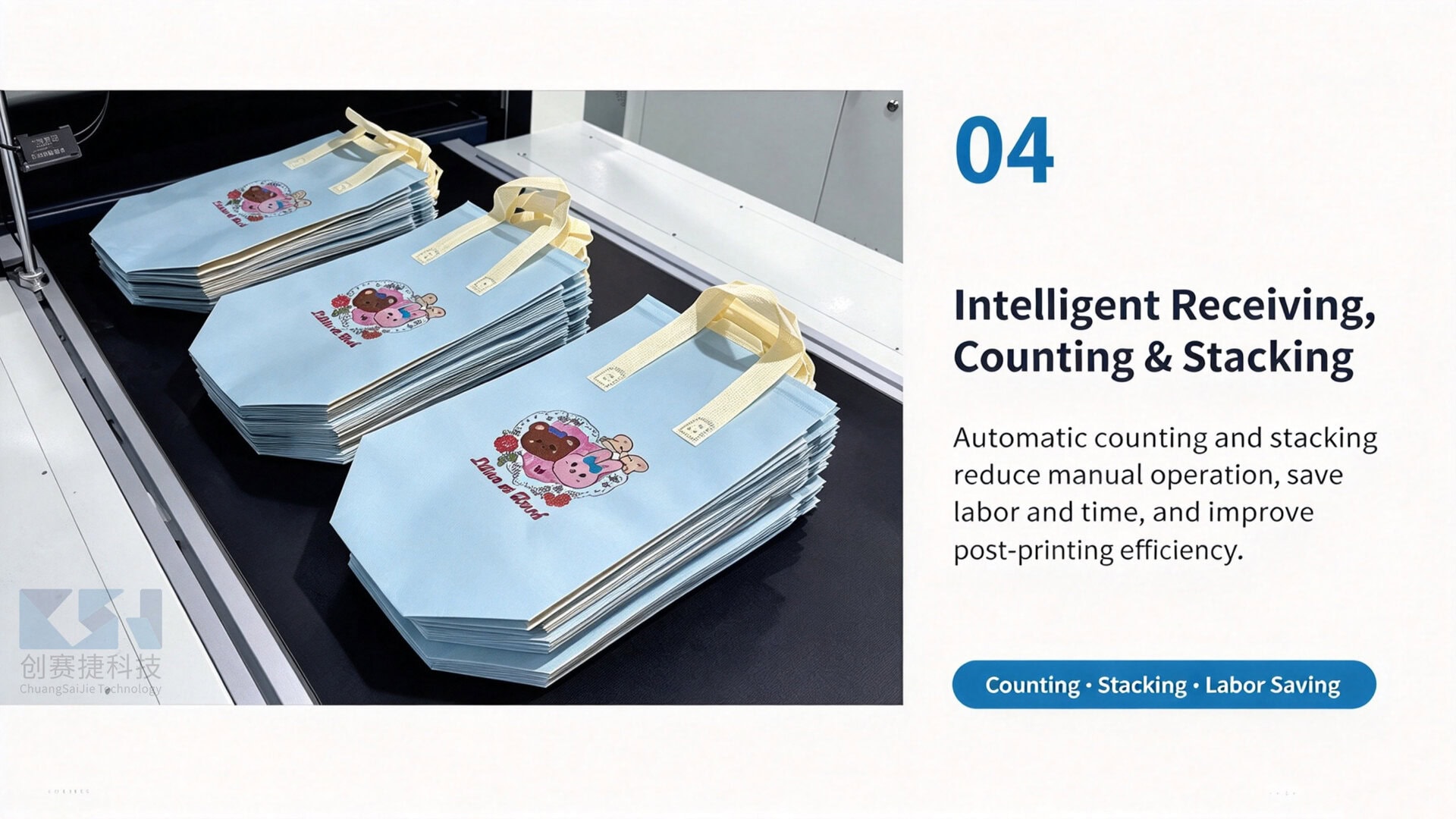

• Intelligent counting & stacking. Printed bags are automatically counted, stacked, and released at a set count — no manual counting, saving labor and time.

• Reliable after-sales support. Delivery, on-site installation, operator training, one year of free on-site service, lifetime technical support, and free software upgrades.

パラメータ
データ名 技術仕様
モデル	CSJ-G8005C
印刷幅	Color108mm+Single Black/White108mm Color216mm
Feed bag width	200-700mm (customizable)
Feed bag height	100-600mm
印刷精度	360dpi
印刷メディア	白いボール紙袋、非編まれた袋、麻袋、真珠で飾られたフィルムの泡袋、等。
印刷速度	0-40 pcs/min
インクタイプ	環境に優しいUVink
カラープロファイル	CMYK（オプション）
ダイナミック・データベースのサポート	1135kg
労働環境	温度 15℃-35℃ 相対湿度 20%-80%
ダイナミック・データベースのサポート	EXCEL,TXT,CSV等（二次開発対応）
プリンター寸法	4800*1150*2000mm
電圧	220V50Hz/60Hz; 12KW
オペレーティングシステム	Win7/Win10オペレーティングシステム
データ・インターフェース	イーサネット/WIFI
データ伝送	USB3.0(USB2.0互換)
グラフィック形式	BMP/PDF/TIFF/JPGなどのグラフィックフォーマットをサポート
