Automatic One Pass Digital printing machine for 3-side book edges

Perfect for Book Edge Full-Color Printing

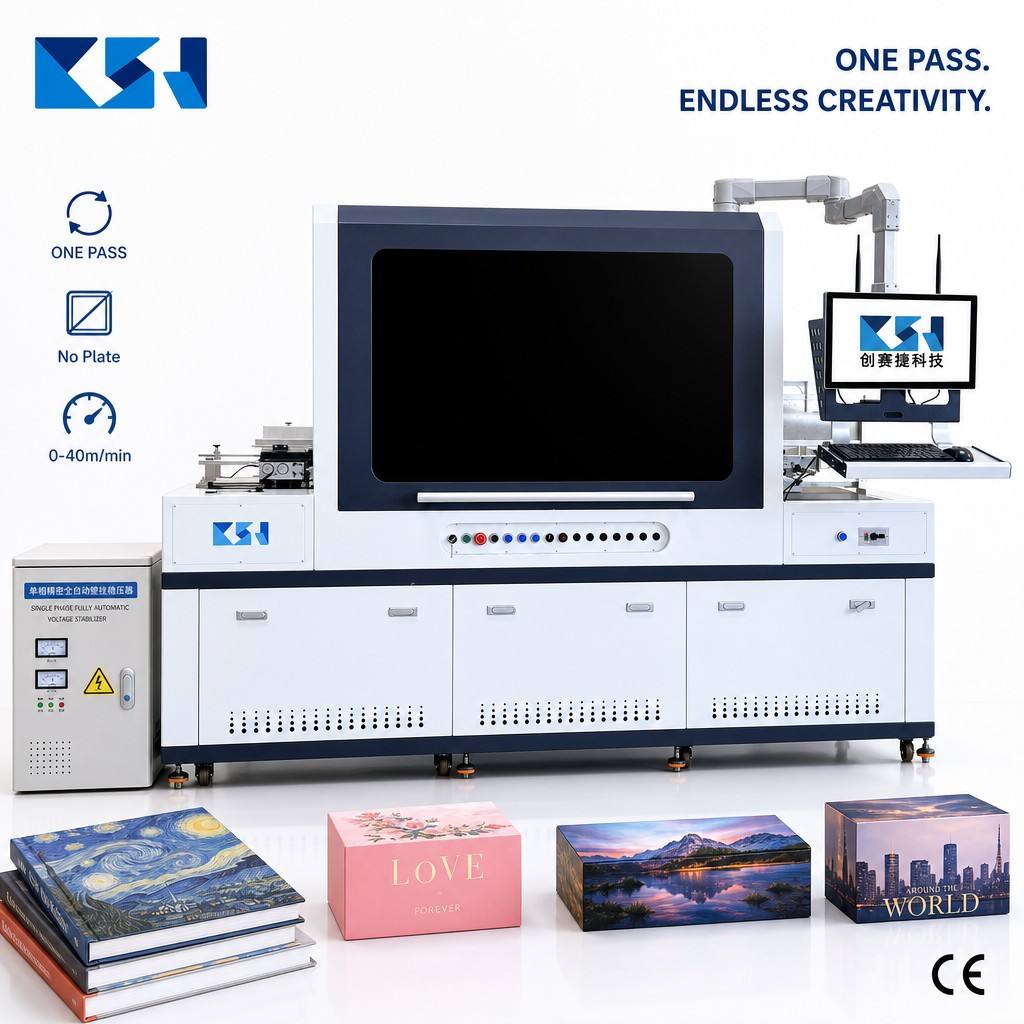

The CSJ-EDGE3000 is a water-based digital inkjet printer purpose-built for book edge printing — no plate making, no color registration, and full-color output in a single pass. There is no minimum order quantity: even a single book can be printed, making it ideal for on-demand and small-batch customization. It prints on the side, top, and bottom edges of the book block (three-sided book edge printing), delivering vibrant CMYK full color at 1200dpi precision. The intelligent feeding, delivering, and take-up systems handle books automatically, with adjustable fixtures for precise positioning and support for printing up to three books side at a time. With a print speed of 0–40 m/min and an eco-friendly water-based ink system, it produces clean, vivid, durable edge printing while keeping operation simple and labor costs low. Best for publishers, print finishers, and binderies that want to add high-value, full-color book edge decoration without the cost and MOQ of traditional plate-making.

---

Empower Your Business

• Print on demand from 1 book. No MOQ, no plate fees, no color registration — perfect for small-batch and personalized book edge orders.

• Wide color gamut. CMYK four-color system supports single-color, multi-color, and gradient printing with 1200dpi high-fidelity color reproduction.

• Three-sided book edge printing. Prints the side, top, and bottom edges of the book block for full 360° visual impact on every title.

• Fast production. 0–40 m/min print speed; adjustable fixtures enable precise positioning and up to three books printed at once.

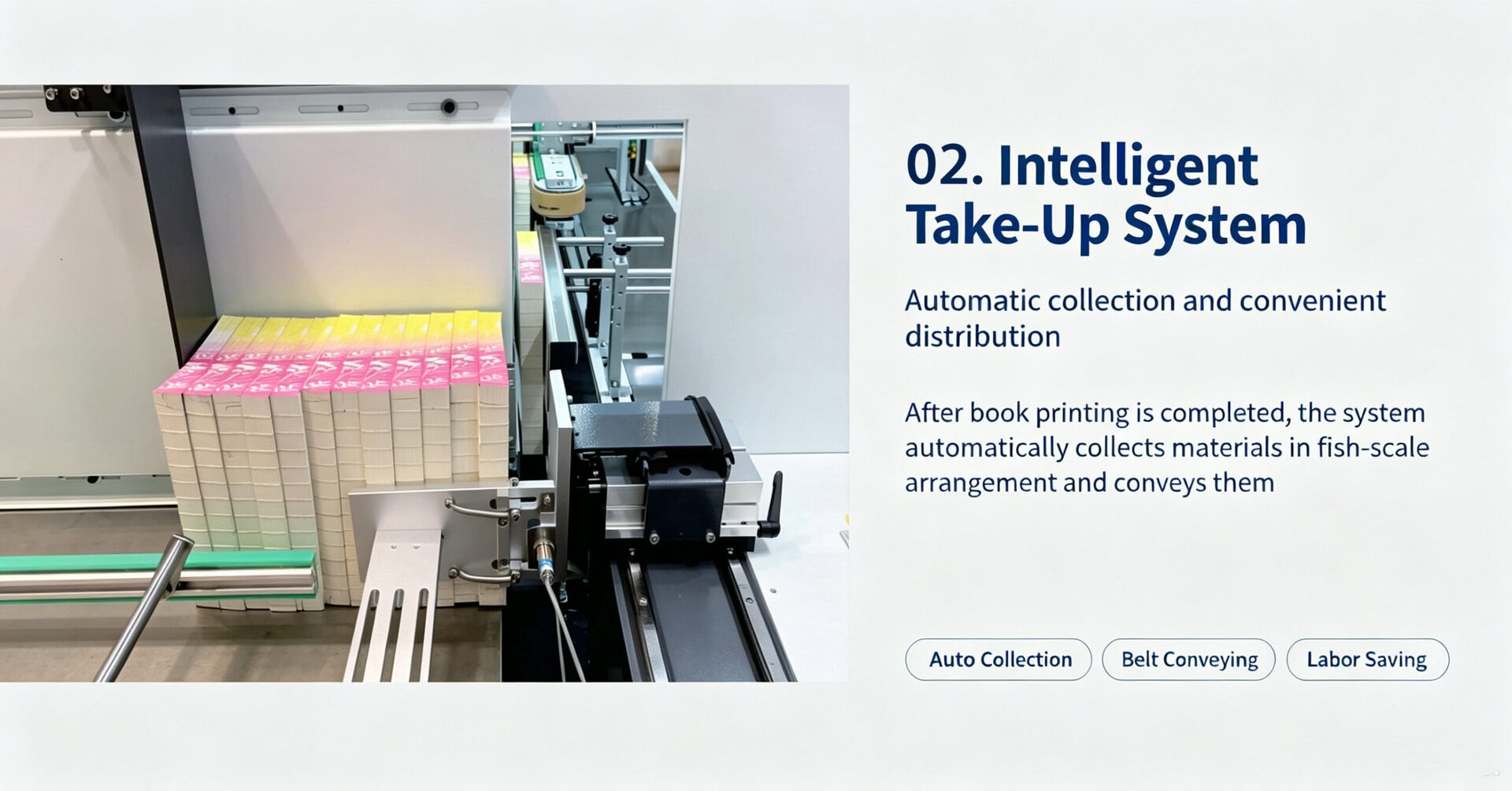

• Intelligent automation. Auto feeding, delivering, and fish-scale take-up with belt conveyor to the outlet — saves labor and runs efficiently.

• Wide book compatibility. Handles book widths 100–250mm, lengths 100–350mm, thickness 15–50mm, and print widths 130 / 210 / 297mm.

• Safe & eco-friendly. Uses eco-friendly water-based ink with circular ink supply; an anti-collision device protects the machine when material runs out.

• Reliable after-sales support. Delivery, on-site installation, operator training, one year of free on-site service, lifetime technical support, and free software upgrades.

Name des Modells	CSJ-EDGE3000
Tinte	Umweltfreundliche UV-Tinte
Resolution	1200DPI
Print Width	130mm/210mm/297mm
Book width	100-250mm
Book lenght	100-350mm
Book thickness	15-50mm
Print Speed	0-40Meter/Minutes
Color	CMYK
Suporrt	BMP/JPG/PDF/TIFF
Dimension	2600*1700*1950mm
Spannung	220V 50Hz/60Hz
Power	5KW
Weight	762KG
Das Betriebssystem	Betriebssystem Win7/Win10
Übertragung von Daten	USB 3.0 (USB 2.0 compatible)
Temperatur	Temperature 15-35℃ Relative Humidity 20%-80%
Grafisches Format	BMP/PDF/TIFF/JPG
Druckmedien	Kraft paper, corrugated paper, rice paper, cotton paper and other absorbent media
