Product Details
Perfect for Side & Flatbed UV Printing on Containers

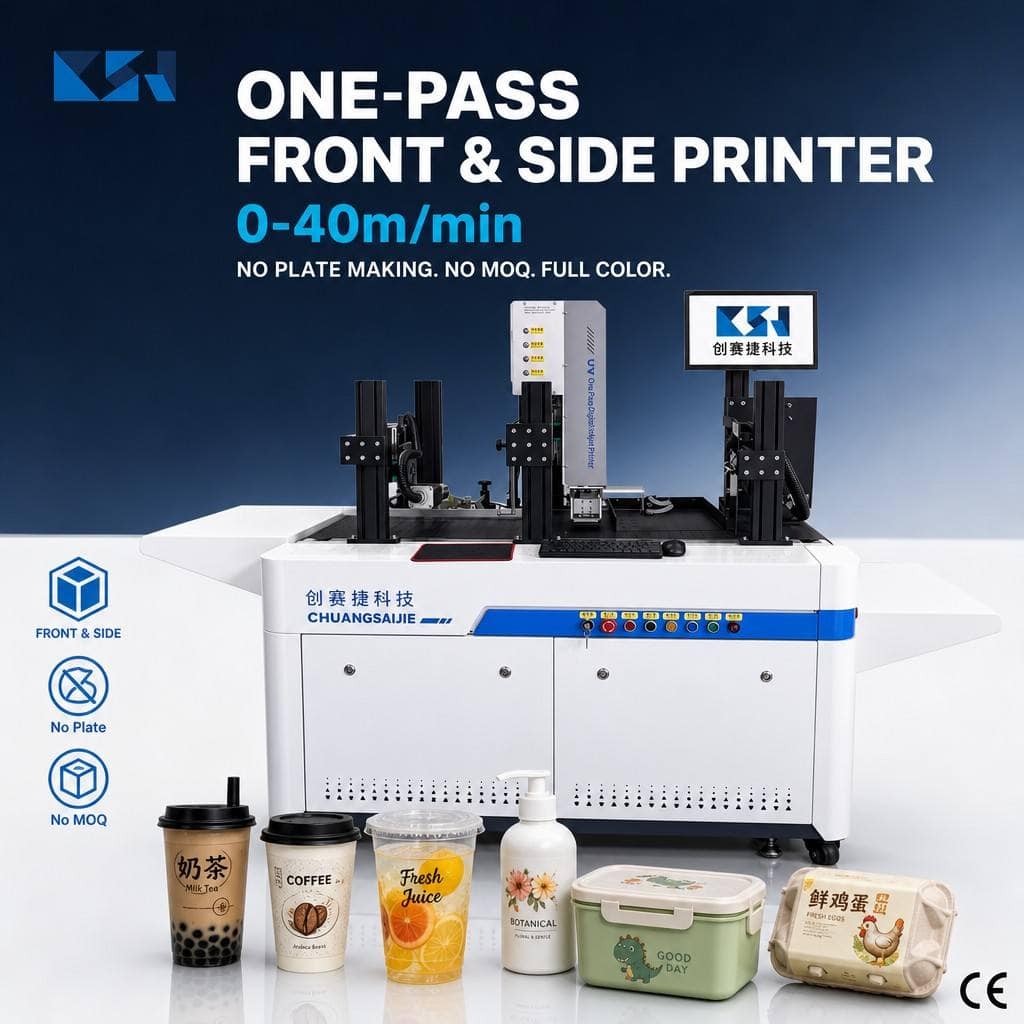

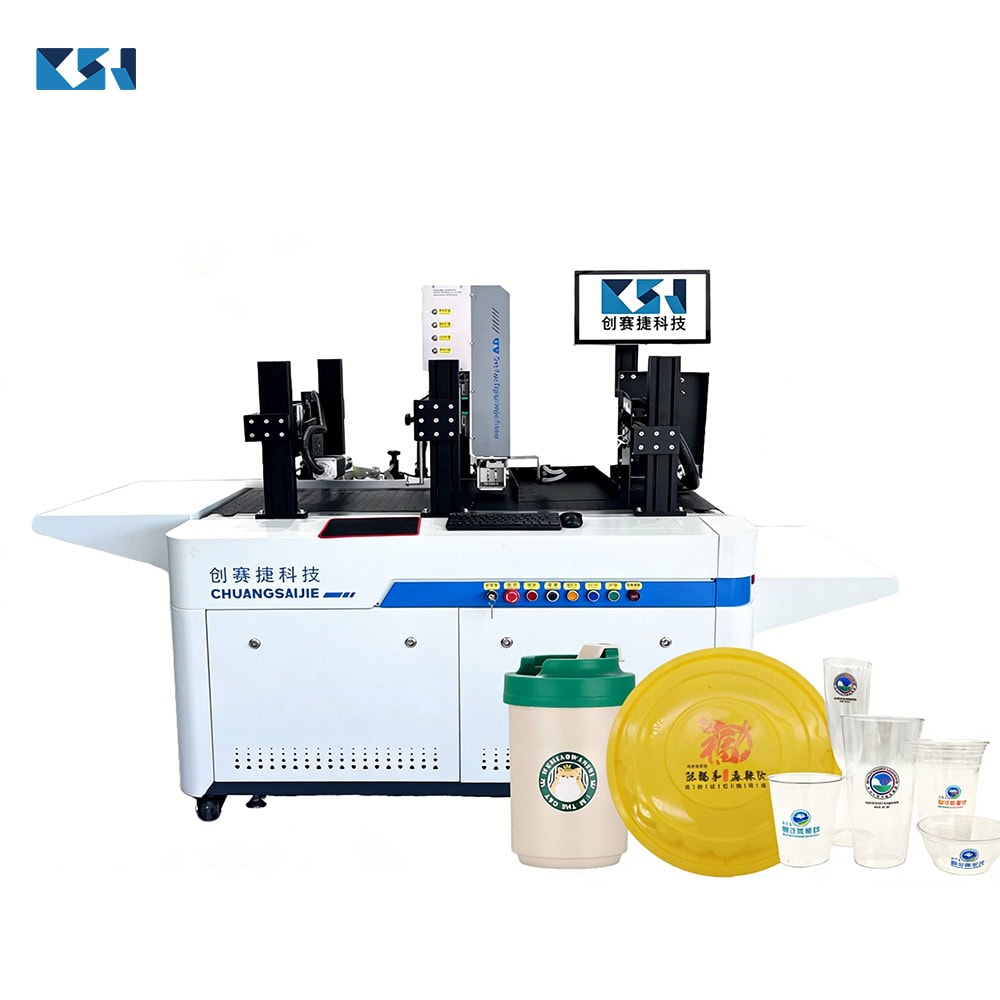

The CSJ-G502C is an all-in-one UV printer that prints the side and flat/front surfaces of containers in a single system. Import your design and print directly onto cups, meal boxes, bottles, and jars — no plate making, no setup, and no minimum order quantity. Even a single piece can be printed, making it ideal for on-demand and small-batch customization. With output of approximately 4,000–8,000 pieces per hour (depending on manual loading speed), it keeps up with real production demands while delivering vibrant, full-color results. The UV ink system cures instantly for durable, scratch-resistant finishes. Best for printing on PP, PS, and PET cups, bowls, meal boxes, and paper-plastic soft packaging, with both side and flat surfaces supported.Empower Your Business
- Print on demand from 1 piece. No MOQ, no plate fees — perfect for small-batch customization and personalized container orders.
- Low ink cost. Approximately 200–300 pieces per unit of ink, depending on design coverage.
- Fast production. 4,000–8,000 pieces per hour, helping you shorten lead times and ship faster.
- Wide material compatibility. Prints on PP, PS, and PET cups, bowls, meal boxes, and paper-plastic flexible packaging — on both side and flat surfaces.
- Simplified operation. Import your image and print directly; no complex plate-making or registration process required.
- Reliable after-sales support. Delivery, on-site installation, operator training, one year of free on-site service, lifetime technical support, and free software upgrades.
- Fast return on investment. Up to 60,000 pieces per day — at a small per-piece margin, the machine can pay for itself in about one month.
| Parameter | |
| DATA NAME TECHNICAL CONFIGURATION | |
| Model name | CSJ-G502C |
| Print maximum width | 54mm/75mm |
| Feed length | 80-550mm |
| Printing accuracy | 300dpi |
| Print speed | 0-40m/min |
| Ink type | Eco-friendly UV ink |
| Colorprofile | CMYK |
| Support fordynamic databases | EXCEL/TXT/CSV,etc. (supports secondary development) |
| Printer size | 2400*1000*1650mm |
| Net weight of printer | 381kg |
| Voltage | 220V50Hz/60Hz |
| Temperature | Temperature 15-35℃ Relative Humidity 20%-80% |
| Power of the whole machine | 5KW |
| Operating system | Win7/Win10 operating system |
| Data interface | Ethernet/WIFI |
| Data transmission | USB3.0(USB 2.0 compatible) |
| Graphic format | Support BMP/PDF/TIFF/JPG and othergraphic formats |
| Print Media | Finished tea cups,plastic lunch boxes,pulp lunch boxes,fruit cartons,egg cartons and other media |
