Product Details
Support according to the Excel table data to identify, and then print,once the completion of the first column of the task is completed,the system will automatically complete the second column of the task,until all the contents completed.In addition,you can also import the data base to print directly.I t can solve the problems of many models,codes and batches.Users can flexibly choose the printing mode according to their own product requirements.There are two modes available:non-variable mode and variable mode.In the non-variable mode.The system can print the same picture repeatedly according to the instruction; In variable mode,the system can print a whole set of pictures repeatedly according to the instruction,in order to meet the printing requirements indifferent scenarios.Instead of going through the traditional plate-making process,the finished design is simply exported through the computer software and can then be printed directly.Suitable for single RFID tags,garment tags,cards,tickets and other single tags.Can be printed on the surface of one-dimensional code, two-dimensional code, anti-counterfeiting code, pictures, personalized numbers, text, running numbers, databases and soon. At the same time for reading and writing detection, scrap automatic rejection, lack of code automatically make up the code and other functions.
| Parameter | |
| DATA NAME TECHNICAL SPECIFICATIONS | |

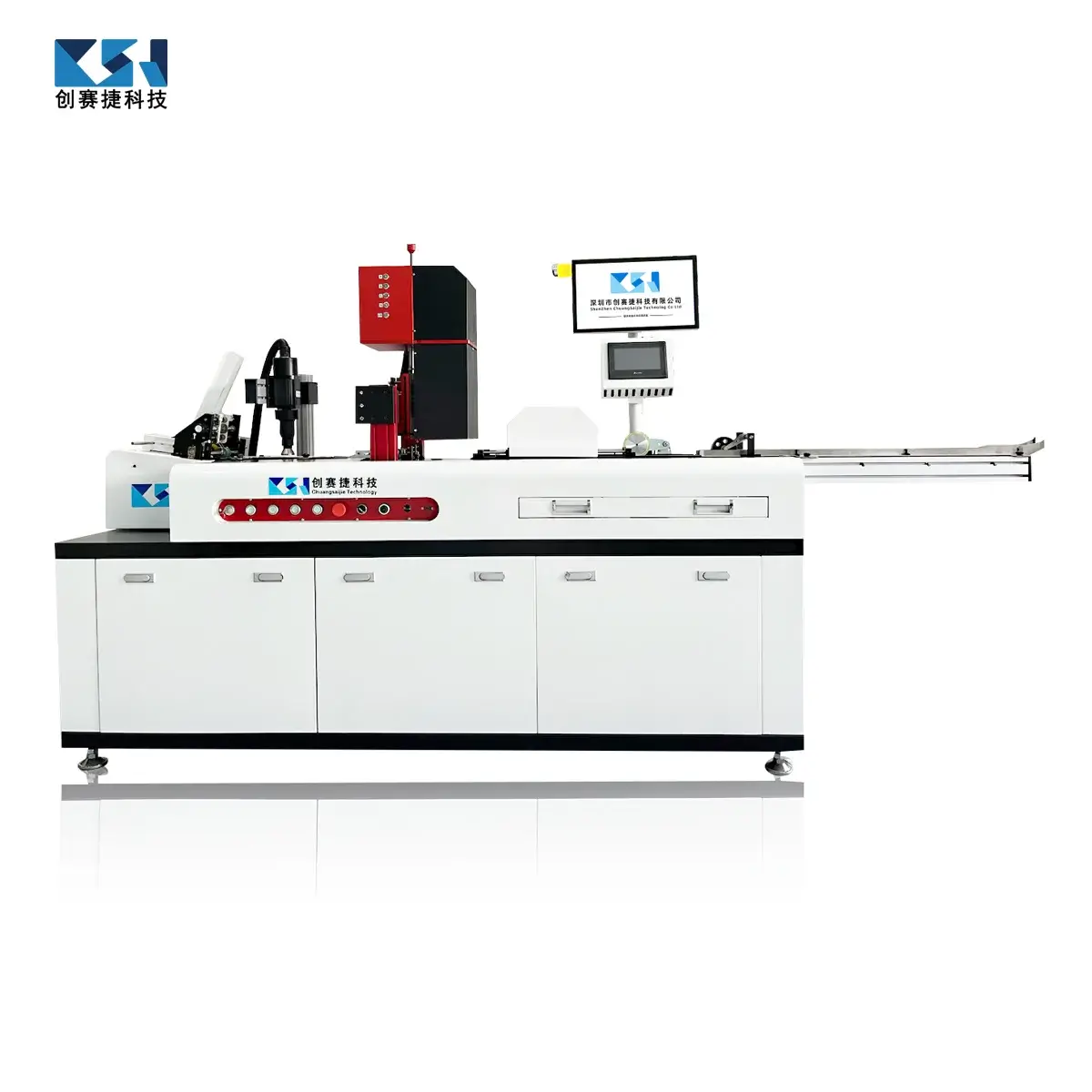

| Model | CSJ-G604FC/CSJ-G601FS |
| Print width | 54 mm |
| Feed width | 30-120mm |
| Feed Thickness | 0.2-1.0mm (customizable) |
| Printing accuracy | 600dpi |
| Print medium | coated paper,synthetic paper,art paper,PET,BOPP,PE,PVCand etc |
| Print speed | 0-60m/min(full color)/0-90m/min(single color) |
| Ink type | Eco-friendly UVink |
| Color profile | CMYK blue-red-yellow-black/single black |
| Support for dynamic databases | EXCEL,TXT,CSV,etc. (supports secondary development) |
| Printer dimension | 3000*800*1700mm |
| Supportfor dynamic databases | 950kg |
| Voltage | 220V50Hz/60Hz |
| Operating system | Win7/Win10 operating system |
| Data interface | Ethernet |
| Data transmission | USB3.0(USB2.0 compatible) |
| Graphic format | Support BMP/PDF/TIFF/JPG and other graphic formats |
| Supported Printed Content | Barcode,QR code,character,running code,etc. |
