Product Details

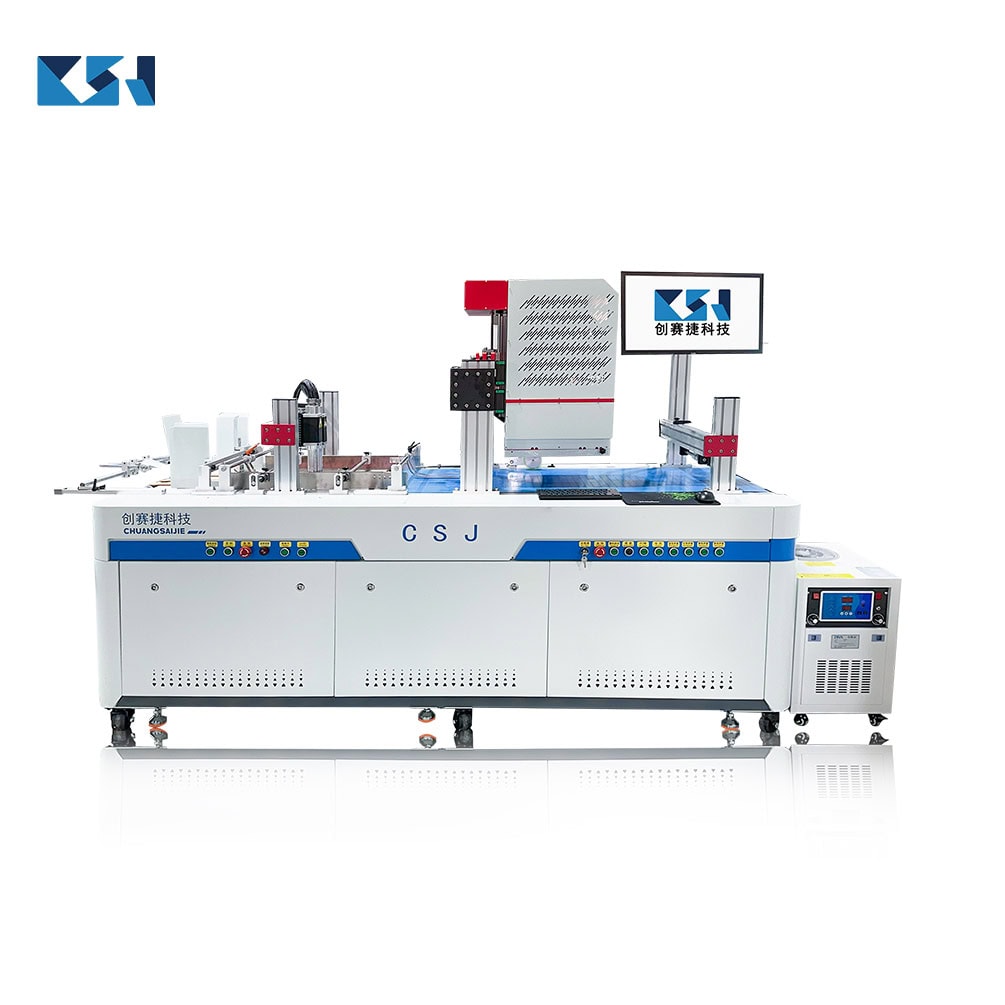

CSJ-U600 UV Single Pass Digital Printer for Flexible Packaging Bags
CSJ-U600 UV Single Pass Digital Printer for Flexible Packaging Bags The CSJ-U600 is an automatic digital printer for single sheets, offering high-speed (40-50m/min), UV full-color prints with eco-friendly inks. Its friction feeder and auto-correction ensure precision, while adjustable widths (50-400mm), no-plate setup and automatic deviation correcting device for precise, hands-free production, enable flexible, cost-effective small-batch production. Compact and energy-efficient. Modular Design, feeder and printer can be seperated into 2 parts, when using the automatic feeder, you can print kinds of single sheets paper proudcts, like plastic ziplock pouches; Move away the feeder, you can print other flat surface plastic material.
| Parameter | |
| DATA NAME TECHNICAL CONFIGURATION | |
| Model name | CSJ-U600 |
| Print width | 108mm |
| Feed length | 80-550mm |
| Printing accuracy | 360dpi |
| Print speed | 0-40m/min |
| Ink type | Eco-friendly UV ink |
| Colorprofile | CMYK |
| Support fordynamic databases | EXCEL/TXT/CSV,etc. (supports secondary development) |
| Printer size | 3000*1000*1700mm |
| Net weight of printer | 730kg |
| Voltage | 220V50Hz/60Hz |
| Temperature | Temperature 15-35℃ Relative Humidity 20%-80% |
| Power of the whole machine | 8KW |
| Operating system | Win7/Win10 operating system |
| Data interface | Ethernet/WIFI |
| Data transmission | USB3.0(USB 2.0 compatible) |
| Graphic format | Support BMP/PDF/TIFF/JPG and othergraphic formats |
| Print Media | Pe, pp, abs, pvc, pet, pe, opp, coated paper, synthetic paper, pearlescent film, double-glue paper, kraft paper, rice paper, white cardboard, writing paper, corrugated paper |
